Alumina Thermocouple Protection tube
My factory looking for distributors.
Advantages of Alumina Thermocouple Protection Tube
1. Alumina thermocouple protective tube is a widely used thermal measurement device in industry and laboratories, with multiple advantages.
2. Alumina thermocouple protection tubes has good high-temperature resistance and can work stably under extreme temperature conditions, ensuring the accuracy and reliability of measurements.
3. Alumina thermocouple protection tubes have excellent chemical stability and can withstand corrosion from acidic and alkaline media, thereby extending the service life of protective tubes.
4. The alumina thermocouple protection tube has good mechanical strength and wear resistance, which can resist external environmental challenges and protect the sensitive components of the thermocouple from damage.
5. Alumina thermocouple protection tube have excellent insulation performance, which can effectively prevent current leakage and short circuits, ensuring the safety and reliability of the measurement process.
6. Alumina thermocouple protective tubes have become an ideal choice in the field of thermal measurement due to their multiple advantages such as stability, corrosion resistance, and safety.
Application of Alumina Thermocouple Protection Tube
1. High temperature measurement: The aluminum oxide ceramic thermocouple protection tube can withstand extremely high temperatures and is commonly used for temperature measurement in high-temperature furnaces, furnaces, heat treatment equipment, and other occasions.
2. Chemical industry: Alumina ceramic thermocouple protective tubes can stably measure the temperature of liquids or gases, and are used to monitor temperature changes in equipment such as reactors, pipelines, and storage tanks, ensuring the safety and stability of the production process.
3. Power industry: Alumina ceramic thermocouple protective tubes are used to monitor the temperature of power generation equipment, transmission lines, transformers and other equipment to ensure the normal operation of the equipment and prevent overload and faults from occurring.
4. Metallurgical industry: Alumina ceramic thermocouple protective tubes can be used to monitor temperature changes during the metal melting process, to control the production process, improve production efficiency and product quality.
5. Laboratory research: Alumina ceramic thermocouple protective tubes are also widely used in laboratory research fields, for various temperature measurement experiments, such as chemical reactions, material performance testing, etc.
Alumina Ceramics
Aluminium Oxide (Alumina) is the most widely used ceramic material with near limitless manufacturing capabilities. They are grouped together based on purity levels, as the purity of Alumina’s increases wear and corrosion resistance also increases. Alumina’s are used in a variety of general-purpose applications, and their grade is chosen based on the application environment. Higher purity Alumina’s can be formulated for more demanding applications.
Typical Applications Include: Wear resistant components, High pressure nozzles, Thermocouple tubes, Electrical Insulators, Corrosive labware, Furnace fixtures, Ballistic armor, Thread guides, Laser Tubes, and Pump seals.
Properties of Alumina Ceramics
Alumina Ceramics are the most highly regarded and widely used of the ceramic products. It is non-conductive, resistant to corrosion, and are perfect for electrical insulation. Alumina Ceramic has proven to be the best ceramic for protection of vital electrical components. It can be processed as tubing, sheets, bars, rods, discs, and many other forms depending on the requirements of the project.
Size,Performance index
Protection tube(closed one end) (slip casting) Specification Table
Alumina ceramic performance index (Notice of Correct in Leakeage Rate）
NO. | Property | Unit | Alumina |
1 | Al2O3 | % | >99.3 |
2 | SiO2 | % | — |
3 | Density | g/cm3 | 3.88 |
4 | Water absorption | % | 0.01 |
5 | Compressive strength | MPa | 2300 |
6 | 20℃ leakage rates | Torr・L/sec | >10-11=1.33322×10-12Pa・m3/sec |
7 | Twisting in high temperature | mm | 0.2 allowed in 1600℃ |
8 | Bonding in high temperature | not bonded in 1600℃ | |
9 | 20—1000℃ coefficient of thermal expansion | mm.10-6／℃.m | 8.2 |
10 | Thermal conductivity | W/m.k | 25 |
11 | Electric insulation strength | KV/mm | 20 |
12 | 20℃direct current insulation resistance | Ohm/cm | 1014 |
13 | High-temperature insulation resistance | 1000℃ MΩ | ≥0.08 |
1300℃ MΩ | ≥0.02 | ||
14 | Thermal shock resistance | 4 times not cracked in 1550℃ | |
15 | Maximum working temperature | ℃ | 1800 |
16 | Hardness | Mohs | 9 |
17 | Flexural strength | Mpa | 350 |
Composition table
| NAME | CONTENT(%) |
| Al2O3 | 99.3-99.5(99.7) |
| SiO2 | 0.3-0.5 |
| CaO+MgO | 0.2-0.3 |
| K2O+Na2O | 0.2-0.35 |
| Fe2O3 | <0.1 |
| OTHER | <0.05 |
Our factory
Jinzhou Yunxing Industrial Ceramics Co., Ltd. was established in 2000, mainly producing various types of tubular ceramic products and various industrial parts with alumina content above 99.3%. The factory covers an area of 4000 square meters.
The company's main products are: alumina ceramic tubes, alumina ceramic crucibles, alumina ceramic rods, alumina ceramic boats, alumina ceramic plates, alumina ceramic parts, etc.
The company currently has 3 1800 ° C high-temperature furnaces and 2 1400 ° C low-temperature kilns independently designed and manufactured. The molding process is mainly based on grouting molding, and has other molding process equipment such as extrusion and hot die casting.
The company has 105 employees, including one senior ceramic engineer, three engineers, six overseas sales staff, and four professional after-sales staff.
FAQ
Q1. How to quickly obtain a quote.
A1. Provide detailed dimensions and quantities of the products you require. What is the purpose of the product. Customization of drawings can also be provided.
Q2. What are the benefits of alumina ceramics?
A2. Alumina ceramics is a widely used material because it can be produced in a range of purities—from 85 to 99.9 percent pure—that provide unique benefits. Generally, alumina ceramic components offer quality strength, hardness, corrosion resistance, and thermal stability.
A3. Alumina is often used as a replacement for metallic components in demanding engineering applications. IPS Ceramics supply 95% alumina for applications below 1450 ºC / 2650 °F and 99% alumina for temperatures up to 1600 ºC / 2900 °F or where contamination of the sample must be avoided.
A4. Alumina shares several characteristics with other polycrystalline ceramic materials, such as moderate tensile and bending resistance and the brittle fracture behavior, which is the main disadvantage of the mechanical properties of alumina.

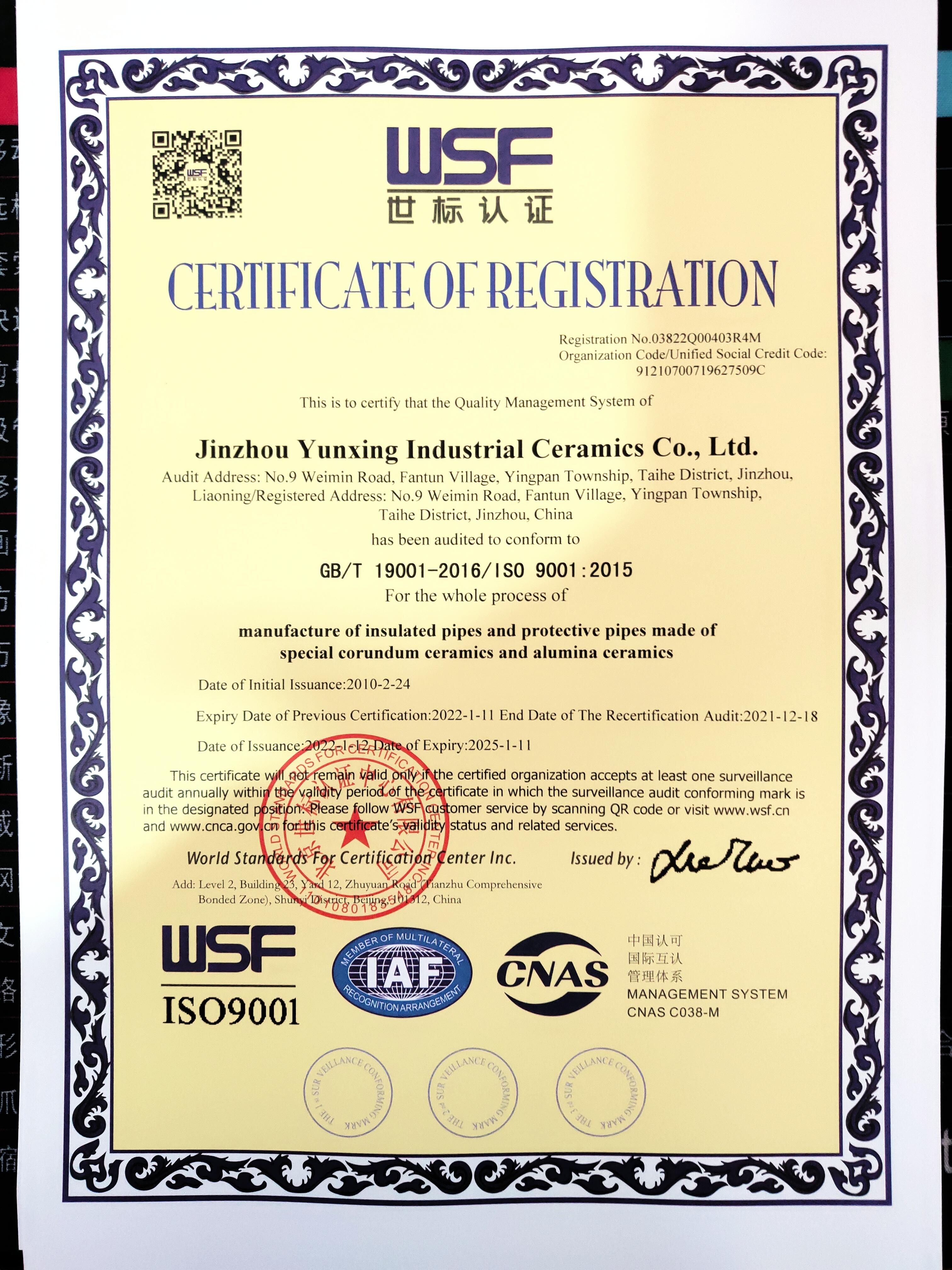

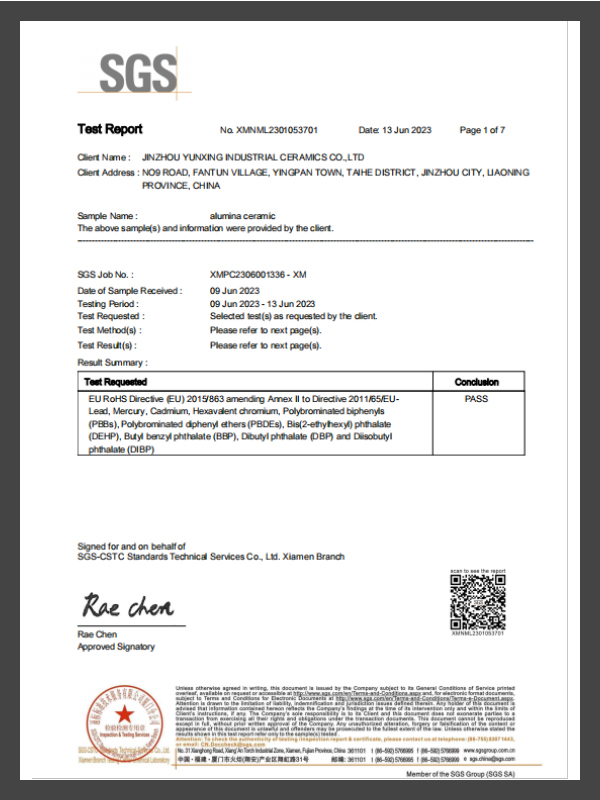

Certificates
